Double-Sided PCB HASL Electronic PCBA Manufacturer 94v0 2 layer Fr4 Printed Circuit Board PCB Express Service In 24Hours

Short Description:


  • Order Requests: Qty. PCB Specification.
  • Necessary Files: PCB Gerber, BOM, Pick&Place Files
  • Others: Assembly drawings, Other requirements
  • Product Detail

    Product Tags

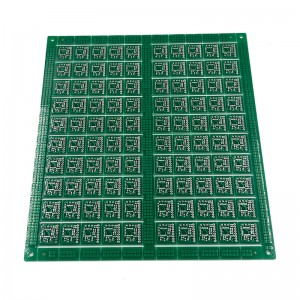

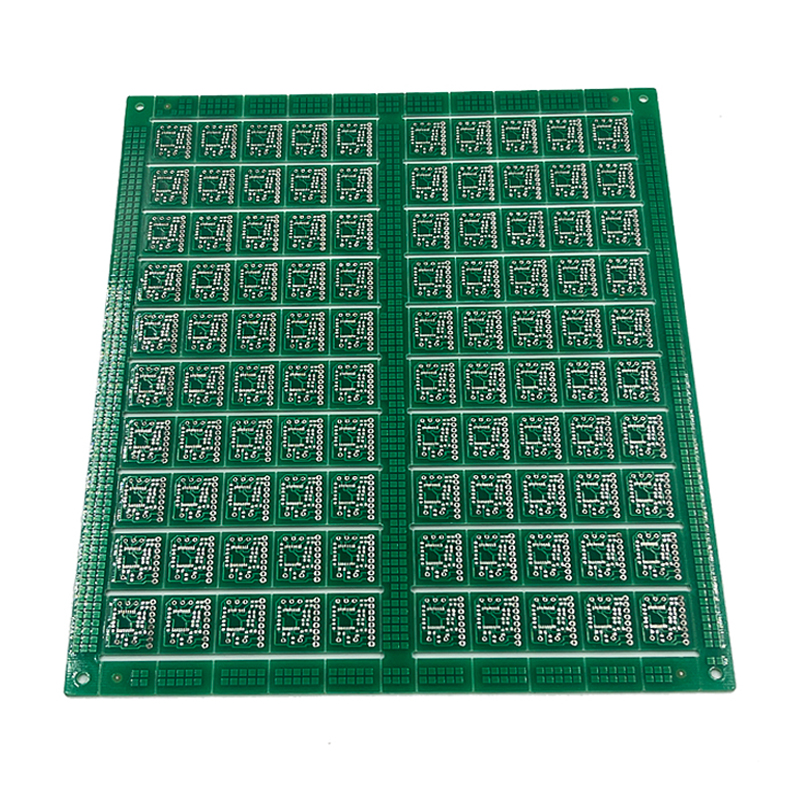

    PRODUCT SPECIFICATION:

    Base Material: FR4-TG140 Surface Finish: HASL
    PCB Thickness: 1.6mm Solder Mask: Green
    PCB Size: 8*10mm Silkscreen: White
    Layer Count: 2/L Cu Thickness 35um(1oz)

    MANUFACTURING CAPABILITY:

    1. Layer Count: 1- 32L

    2. Max. Size: 1200 * 600mm

    3. Copper thickness: 0.5- 14 OZ

    4. PCB thickness: 0.2-5.0mm

    5. Min. Line width: 0.075mm/ 3mil

    6. Min. Space: 0.075mm/ 3mil

    7. Min. Drilling: 0.1mm/ 4mil

    8. Min solder mask bridge: 0.1mm/ 4mil

    9. Min. Outline tolerance: ±0.10mm/ 4mil

    10. Impedance control tolerance: ±10%

    11. V slot angel: 30°/ 45°/ 60°

    12. Hole size tolerance: ±0.05mm

    13. Hole tolerance: ±0.076mm

    14. Solder mask type: Sensitive ink

    15. Laminate tolerance: 8%; Bend: 0.5%

    16. Other test requirements: Dip tin test, tensile test, impedance test

    17. Surface finish: HASL (Lead Free), Immersion Tin, Gold Plated, ENIG, OSP, Gold finger, ect.

    18. PCB flying probe test, Test jig test

    EXPRESS PCB LEAD TIME:

    LAYER\QTY

    ≤ 0.2M2

    0.2M2≤ 1 M2

    ≥ 1 M2

    1-2 layer

    ≤ 12 hour or ≤ 24 hour

    2-4days

    5-7days

    4-10 layer

    ≤ 24 hour or ≤ 48 hour

    3-4days

    6-8days

    12 layer or More

    ≤ 48 hour or ≤ 72 hour

    6-8days

    ≥ 10days

    PCB APPLICATION:

    PHILIFAST customize varies type of  PCB to meet our customers’ requirements.With the rapid and constant development of electronics technology, Printed circuit boards have been widely designed and applied to all kinds of fields to satisfy society demands.

    1. Consumer Electronics

    2. Medical Devices

    3. Industrial  electronics

    4. Automotive Applications

    5. Aerospace facility

    Packing&Shipping:

    1.2

    FAQ:

    1,What files are necessary for us to assembly PCBs for you?

    1.1 PCB files(Gerber files)

    1.2 BOM(Bill of components)

    1.3 Cendroid files/Pick&place files)

    1.4 Assembly drawings

    In order to ensure the quality, BOM files must be clearly noted specific part number,Brand required.it’s very important for us to purchase right components for your project.

    2, Lead time for Turnkey circuit board assembly service(small or medium- sized batch)?

    2.1 PCB fabrication: Normally 6-15days after engineering query

    2.2 Parts: Normally 3-15days (Stocked parts: 3-7days; Imported parts:10- 15days)

    2.3 Assembly: Normally 3- 7days (from parts IQC to packing)

    2.4 Shipping: Normally 3- 7days (depends on EXPRESS), Forwarder appointed by customer supported.

    So, it usually takes around 10- 25days lead time for turnkey PCB assembly.
