ELECTRONIC PCB EXPRESS SERVICE FR4 CIRCUIT BOARD FABRICATION DOUBLE-SIDED RED SOLDER MASK IMMERSION GOLD PCB BOARD WITH HIGH QUALITY

Short Description:

No MOQ.

Capability:25000 Square Inch per Month

Express PCB in 12hours


Product Detail

Product Tags

PRODUCT SPECIFICATION:

Base Material: FR4-TG140 Surface Finish: ENIG
PCB Thickness: 1.6mm Solder Mask: Red
PCB Size: 80*168mm Silkscreen: White
Layer Count: 2/L Cu Thickness 35um(1oz)

MANUFACTURING CAPABILITY:

1. Layer Count: 1- 32L

2. Max. Size: 1200 * 600mm

3. Copper thickness: 0.5- 14 OZ

4. PCB thickness: 0.2-5.0mm

5. Min. Line width: 0.075mm/ 3mil

6. Min. Space: 0.075mm/ 3mil

7. Min. Drilling: 0.1mm/ 4mil

8. Min solder mask bridge: 0.1mm/ 4mil

9. Min. Outline tolerance: ±0.10mm/ 4mil

10. Impedance control tolerance: ±10%

11. V slot angel: 30°/ 45°/ 60°

12. Hole size tolerance: ±0.05mm

13. Hole tolerance: ±0.076mm

14. Solder mask type: Sensitive ink

15. Laminate tolerance: 8%; Bend: 0.5%

16. Other test requirements: Dip tin test, tensile test, impedance test

17. Surface finish: HASL (Lead Free), Immersion Tin, Gold Plated, ENIG, OSP, Gold finger, ect.

18. PCB flying probe test, Test jig test

EXPRESS PCB LEAD TIME:

LAYER\QTY

≤ 0.2M2

0.2M2≤ 1 M2

≥ 1 M2

1-2 layer

≤ 12 hour or ≤ 24 hour

2-4days

5-7days

4-10 layer

≤ 24 hour or ≤ 48 hour

3-4days

6-8days

12 layer or More

≤ 48 hour or ≤ 72 hour

6-8days

≥ 10days

PCB APPLICATION:

PHILIFAST customize varies type of  PCB to meet our customers’ requirements.With the rapid and constant development of electronics technology, Printed circuit boards have been widely designed and applied to all kinds of fields to satisfy society demands.

1. Consumer Electronics

2. Medical Devices

3. Industrial  electronics

4. Automotive Applications

5. Aerospace facility

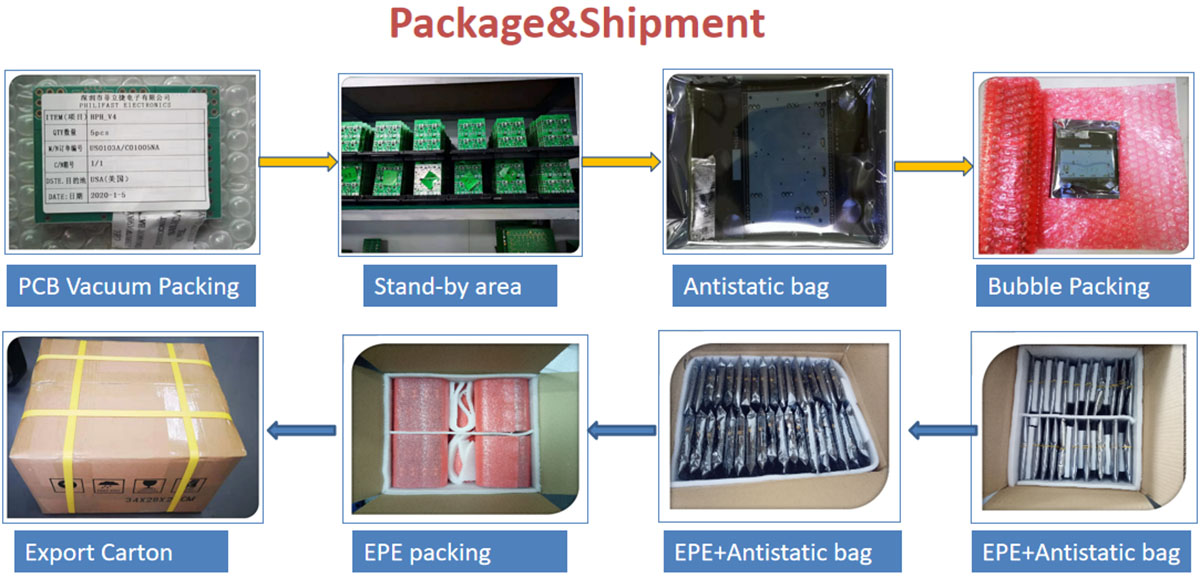

Packing&Shipping:

1.2

FAQ:

1,What files are necessary for us to assembly PCBs for you?

1.1 PCB files(Gerber files)

1.2 BOM(Bill of components)

1.3 Cendroid files/Pick&place files)

1.4 Assembly drawings

In order to ensure the quality, BOM files must be clearly noted specific part number,Brand required.it’s very important for us to purchase right components for your project.

2, Lead time for Turnkey circuit board assembly service(small or medium- sized batch)?

2.1 PCB fabrication: Normally 6-15days after engineering query

2.2 Parts: Normally 3-15days (Stocked parts: 3-7days; Imported parts:10- 15days)

2.3 Assembly: Normally 3- 7days (from parts IQC to packing)

2.4 Shipping: Normally 3- 7days (depends on EXPRESS), Forwarder appointed by customer supported.

So, it usually takes around 10- 25days lead time for turnkey PCB assembly.
