PRODUCT SPECIFICATION：
| Base Material: | FR4-TG140 | Surface Finish: | ENIG |
| PCB Thickness: | 1.6mm | Solder Mask: | Blue |
| PCB Size: | 80*168mm | Silkscreen: | White |
| Layer Count: | 2/L | Cu Thickness | 35um(1oz) |
What files are necessary for us to assembly PCBs for you?
1) PCB files(Gerber files)
2) BOM(Bill of components)
3) Cendroid files/Pick&place files)
MANUFACTURING CAPABILITY：
| Order Qty. | Mass production | Sample production | |
| Layer count | 2~ 32L | 48L | |
| Max. PCB Thickness | 12mm (472mil） | 12mm (472mil) | |
| Min. Width/Space | Inner layer | 2.5mil/ 2.5mil | 2.2mil/ 2.2mil |
| Outer layer | 3mil/ 3mil | 2.8mil/ 2.8mil | |
| Max. Copper Thickness | 6Oz | 30Oz | |
| Min. Drill Hole Diameter | Mechanical hole | 0.15mm (6mil) | 0.1mm (4mil) |
| Laser hole | 0.1mm (4mil) | 0.075mm (3mil) | |
| Max. Size (Finish Size) | Single&Double sided layers | 1150mmX500mm | 1250mmX550mm |
| Multilayer | / | 1250mmX570mm | |
| Aspect Ratio (Finish Hole) | 10:01:00 | 16:01:00 | |
| Material | FR4 | S1000-2, IT180A, IT158, S1000 / S1155, KB6167 | |
| High Frequency | Ro3003, Ro3006, Ro4350B, Ro4360G2, Ro4835, Ro5880 | ||
| Others | Alu.-based, Cu-based etc. | ||
| Surface Finish | HASL, ENIG, Immersion Tin, OSP, Immersion Silver,Electroplating Hard Gold/Soft Gold, Gold Finger,
Selective OSP, ENEPIG. |
||
| HeavyCopperPCB | Max. Copper Thickness | 6Oz | 30Oz |
| HDI PCB | Structure | Any Layer(10L) | Any Layer(10L) |
| Width/Space (Outer Layer) | 2.5mil/2.5mil | 2mil/2mil | |
| Aspect Ratio(Blind Hole) | 1:01:00AM | 1:01:00 | |
EXPRESS PCB LEAD TIME：
|
LAYER\QTY |
≤ 0.2M2 |
0.2M2≤ 1 M2 |
≥ 1 M2 |
|
1-2 layer |
≤ 12 hour or ≤ 24 hour |
2-4days |
5-7days |
|
4-10 layer |
≤ 24 hour or ≤ 48 hour |
3-4days |
6-8days |
|
12 layer or More |
≤ 48 hour or ≤ 72 hour |
6-8days |
≥ 10days |
Lead time for Turnkey circuit board assembly service(small or medium-sized batch)?
PCB fabrication: Normally 6-15days after engineering query
Parts:Normally 3-15days(Stocked parts:3-7days;Imported parts:10-15days)
Assembly:Normally 3-7days(from parts IQC to packing)
Shipping:Normally 3-7days(depends on EXPRESS),Forwarder appointed by customer supported
So,it usually takes around 10-25days lead time for turnkey PCB assembly.
Main Product：
PHILIFAST is a professional circuit board manufacturer that provides multiple varieties circuit board manufacturing services.
As a one- stop PCB manufacturing and assembly service provider with more than ten years of import and export history, Through the joint efforts of all employees, PHILIFAST has developed into a Chinese printed circuit board technology leader.

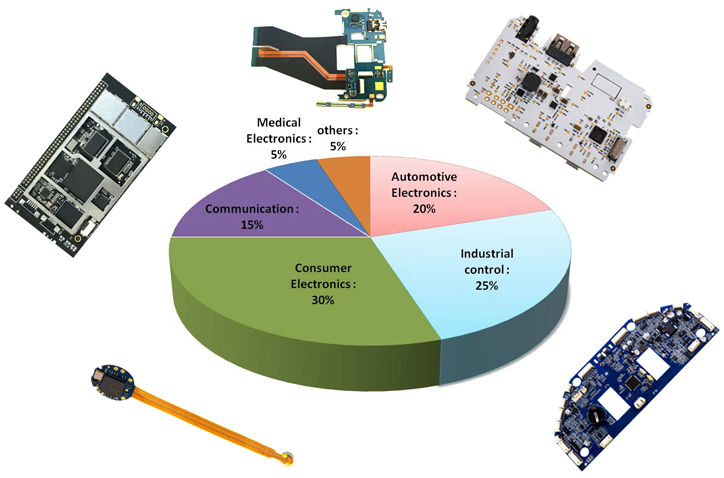

PCB APPLICATION：
