Shenzhen PCB OEM Custom Multi-layer Blue ENIG PCB Custom Circuit Board Manufacturer With Turnkey Assembly Service

Short Description:


  • Order Requests: Qty. PCB Specification.
  • Necessary Files: PCB Gerber, BOM, Pick&Place Files
  • Others: Assembly drawings, Other requirements
  • Product Detail

    Product Tags

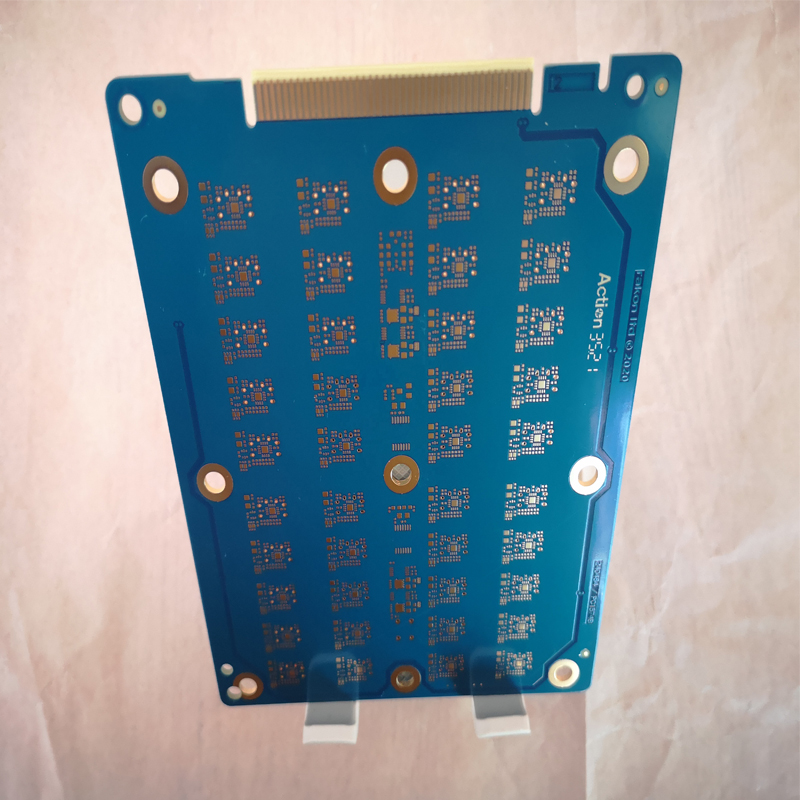

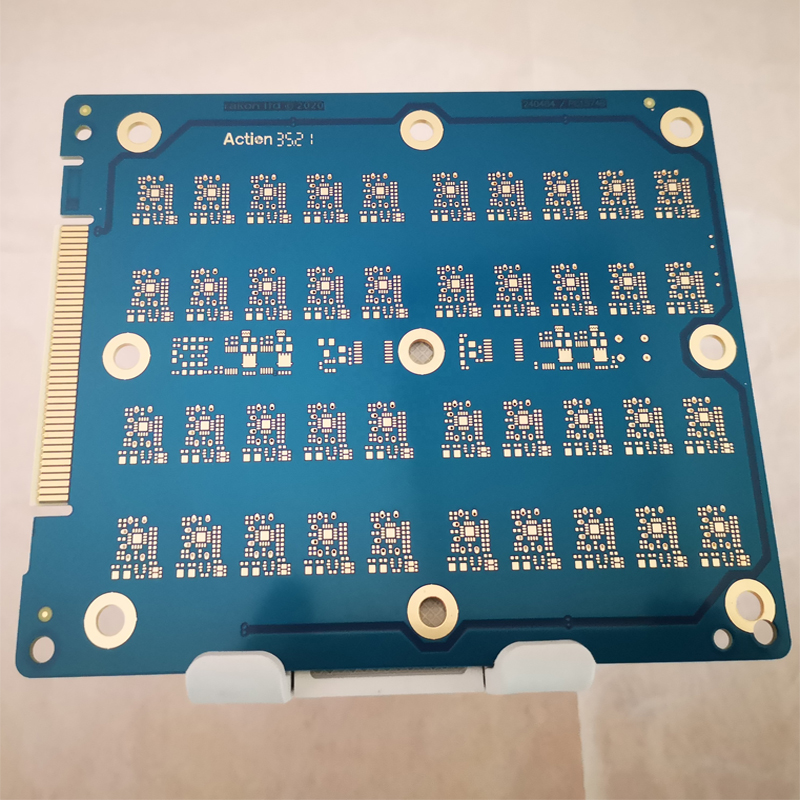

    PRODUCT SPECIFICATION:

    Base Material: FR4-TG140 Surface Finish: ENIG
    PCB Thickness: 1.6mm Solder Mask: Blue
    PCB Size: 120*101mm Silkscreen: White
    Layer Count: 2/L Cu Thickness 35um(1oz)

    To ensure an accurate quote, be sure to include the following information for your project:

              •Complete GERBER files including the BOM list
              •Other file types (Altium,Protel,OrCAD)
              •"Read Me" notes for additional fabrication information
              •Quantities
              •Turn time
              •Panelization Requirements
              •Materials Requirements
              •Finish requirements

    Your custom quote will be delivered in just 2-24 hours, depending on the design complexity.

    OEM Finished product assembly

    1. One-step service

    2. Can be customized according to customer requirements packaging equipment.

    3. Processing of semi-finished products

    4. Finished product assembly

    5.Check completed

    6.Shipping
